CCT AND adjustable color temperature 8W 9W 10W 12W EMC PLASTIC aluminum Ra80 LED downlight

Categories: New Products

Product Description

  • Working Temperature(℃):-20 - 50
  • Lamp Luminous Flux(lm):640-960lm
  • Color Temperature(CCT):3000-6500K
  • Voltage:AC100-240V
  • LED QTY:2835SMD
  • Beam Angle:120 Degree
  • IP Grade:IP44
  • Material:Plastic +Aluminium
  • Cut out:95850mm
  • Lighting solutions service:Lighting and circuitry design
  • Lighting solutions service:DIALux evo layout
  • Lamp Body Material:Aluminium +Plastic
  • IP Rating:IP44
  • Certification:ce
  • Certification:EMC
  • Certification:LVD
  • Certification:RoHS
  • Application:Residential
  • Light Source:LED
  • Warranty(Year):3-YEAR
  • Place of Origin:CN
  • Input Voltage(V):100-240V
  • CRI (Ra>):80
  • Beam Angle(°):120
  • Working Lifetime(Hour):40000
  • Brand Name:Everstar
  • Model Number:LED-DE-8w
  • Lamp Luminous Flux(lm):640-960lm
  • Working Temperature(℃):-20 - 50
Product Description

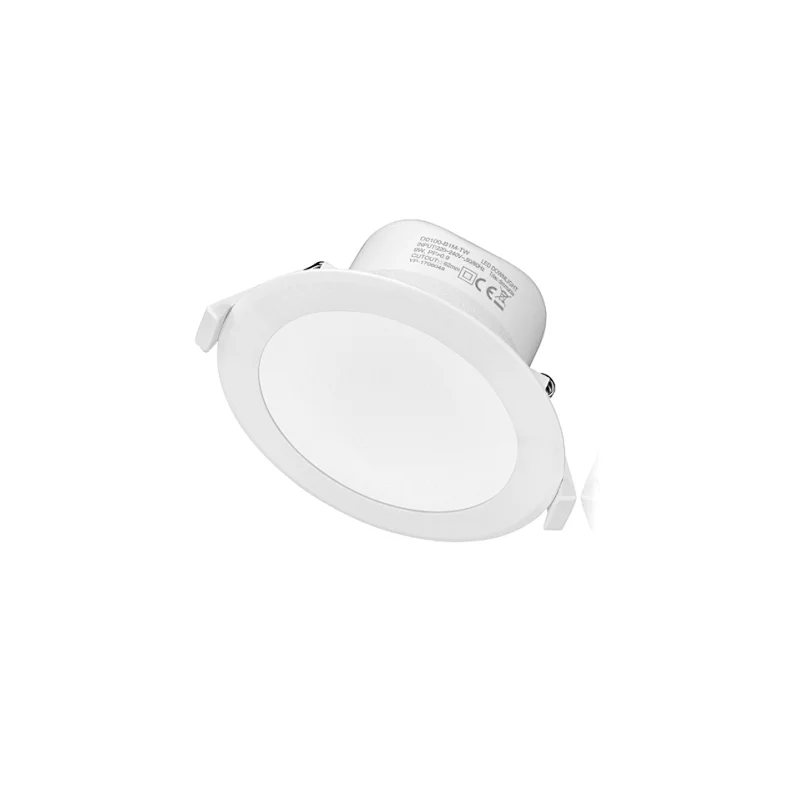

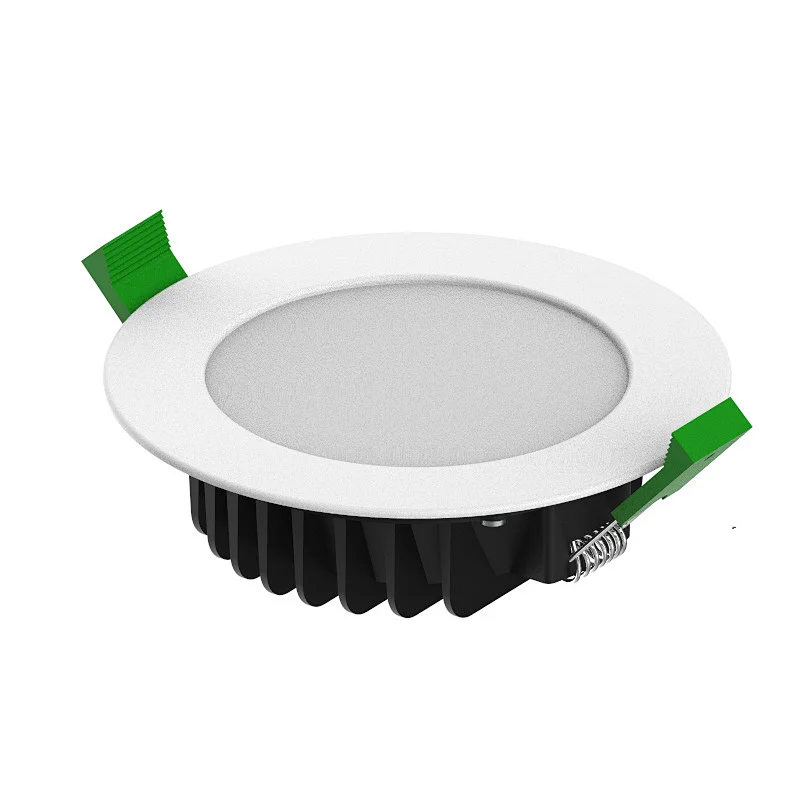

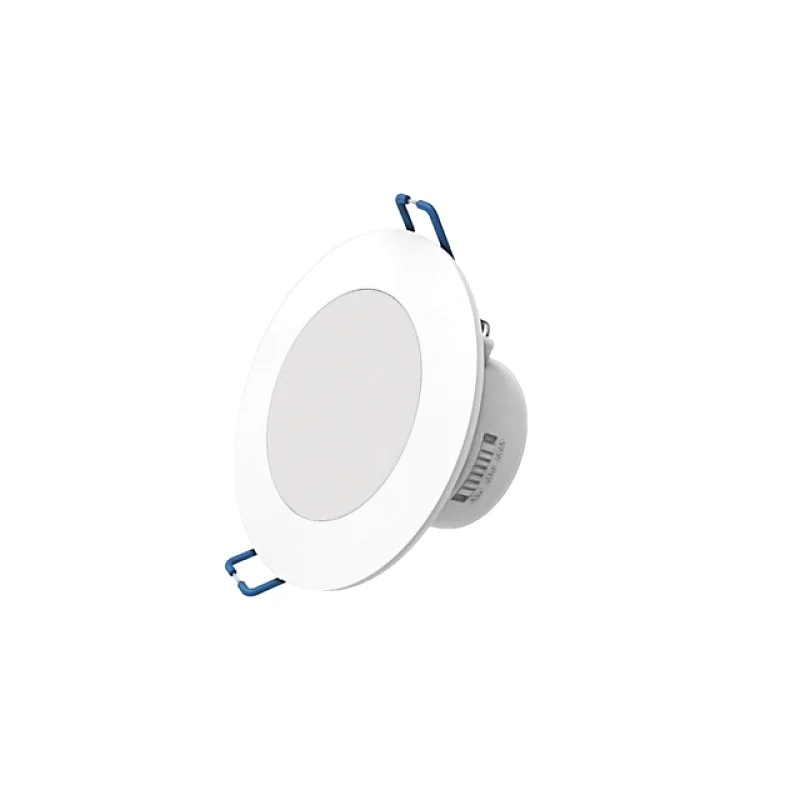

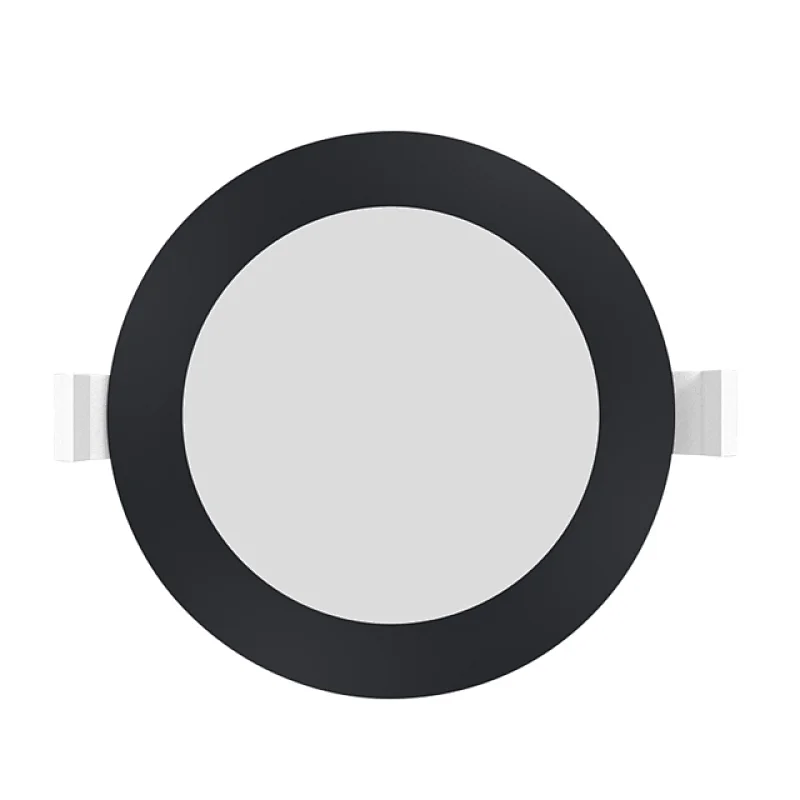

 CCT led downlight







CODESPEC.PKInner
Pc/Box
LED-DE-8wLED Down Light  Power:8W,Voltage:AC100-240V,Power factor >0.5 IP44white box1
 LED:2835SMD, Lumen :640±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø95*50MM   Cut out:Ø70mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DE-10wLED Down Light  Power:10W,Voltage:AC100-240V,Power factor >0.5 IP44white box1
 LED:2835SMD, Lumen :800±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø113*57MM   Cut out:Ø90mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DE-12wLED Down Light  Power:12W,Voltage:AC100-240V,Power factor >0.5 IP44white box1
 LED:2835SMD, Lumen :960±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø145*65MM   Cut out:Ø120mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DE-8wLED Down Light  Power:8W,Voltage:AC100-240V,Power factor >0.5 IP44white box1
 LED:2835SMD, Lumen :640±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø95*50MM   Cut out:Ø70mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DE-10wLED Down Light  Power:10W,Voltage:AC100-240V,Power factor >0.5 IP44white box1
 LED:2835SMD, Lumen :800±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø113*57MM   Cut out:Ø90mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DE-12wLED Down Light  Power:12W,Voltage:AC100-240V,Power factor >0.5 IP44white box1
 LED:2835SMD, Lumen :960±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø145*65MM   Cut out:Ø120mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-7wLED Down Light  Power:7W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :650±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø95*58MM   Cut out:Ø70mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-10wLED Down Light  Power:10W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :950±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø113*59MM   Cut out:Ø92mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-14wLED Down Light  Power:14W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :1330±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø145*66MM   Cut out:Ø130mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-17wLED Down Light  Power:17W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :1650±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø174*69MM   Cut out:Ø150mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-25wLED Down Light  Power:25W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :2450±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø244*85MM   Cut out:Ø205mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-7wLED Down Light  Power:7W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :650±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø95*58MM   Cut out:Ø70mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-10wLED Down Light  Power:10W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :950±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø113*59MM   Cut out:Ø92mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-14wLED Down Light  Power:14W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :1330±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø145*66MM   Cut out:Ø130mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-17wLED Down Light  Power:17W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :1650±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø174*69MM   Cut out:Ø150mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DYT-25wLED Down Light  Power:25W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :2450±10%lm,CRI:Ra>80,Beam angle:90°
CCTColor Temperature : 3000K/4000K/6000K adjustable and dimmable
 dimmableMaterial:Plastic+AL  Size:Ø244*85MM   Cut out:Ø205mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DH-8WLED Down Light  Power:8W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :640±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø94*32MM   Cut out:Ø70mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DH-10WLED Down Light  Power:10W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :800±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:Plastic+AL  Size:Ø113*32MM   Cut out:Ø90mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DI-10WLED Down Light  Power:10W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :700±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:AL  Size:Ø98*35MM   Cut out:Ø70mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC

LED-DI-12WLED Down Light  Power:12W,Voltage:AC220-240V,Power factor >0.9 IP44white box1
 LED:2835SMD, Lumen :840±10%lm,CRI:Ra>80,Beam angle:120°
CCTColor Temperature : 3000K/4000K/6000K adjustable
 Material:AL  Size:Ø113*35MM   Cut out:Ø85mm
 Lifetime: 30000Hr, Warranty: 3 years CE/EMC





Packaging & Shipping


Our Services


Company Information


FAQ

Q: Are you manufacturer?

A: Yes, our factory has been set up for 8 years. Sincerely welcome you to visit us in Ningbo China.

Q: Can you OEM or ODM?

A: Yes, we have strong developing team. The products can be made according to your resquest.

Q: Can we make our own color box?

A: Yes, if the order quantity reaches 1000pcs, we can make your customized color box free of charge.

Q: Can we print our logo on the LED lights?

A: Yes, we can print your logo on the LED lights.

Q: Is the sample available?

A: Yes, we are very glad to make the samples for your test.

Q: What is the warranty for the LED lights?

A: The LED lights have two years warranty. If it is our quality problem, we will replace the new one for the broken.

Q: How long is the lifetime for the LED products?

A: The lifetime is about 40,000hours

Q: What is the MOQ?

A: For our first cooperation, your small order is acceptable.

Q: What kinds of certificate do you have?

A: The LED lights are of good quality approved by CE and RoHS.

Q: What kinds of LED chip do you use?

A: The LED chips we are using are Epistar.

Q: How long is the production time?

A: For samples, the lead time is about 7days. For mass production, the lead time is 20-30days after receiving the deposit payment.

Q: How about shipment?

A: For small order, we can ship it by DHL, FedEx, UPS, TNT, etc. For big order, we can ship it by sea or by air.

Q: What kinds of payment methods do you accept?

A: You can make the payment to our bank account, Western Union or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.
